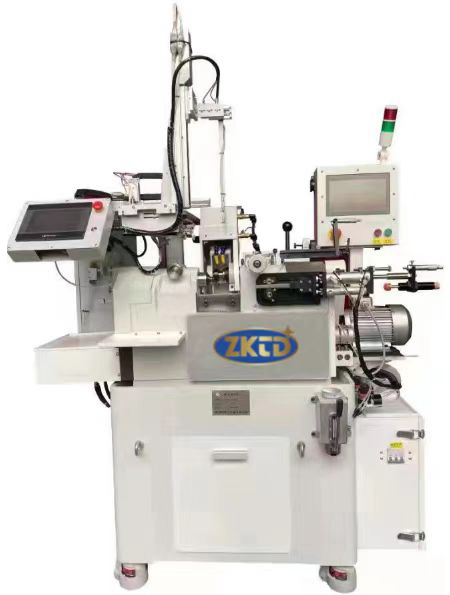

Centering Edge Grinding Optical Manufacturing Equipment / Machine Three Phase

Product Categories

Yantai ZK Optics Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Centering Edge Grinding Optical Manufacturing Equipment Machine Three Phase
Brand: ZKTD
Price: 1 USD

Brand Name : ZKTD

Model Number : ZKTD-MSGD3

Certification : NONE

Place of Origin : CHINA

MOQ : ONE SET

Payment Terms : T/T

Supply Ability : 100 SETS PER MONTH

Delivery Time : ONE MONTH

Packaging Details : STANDARD EXPORT PACKING

Lens processing range : Φ2~ Φ80

Lens axis rotation speed : 0.7~695

Lens processing time : 9.2~920

Movement range of grinding stone axis : 0~ 10

Inner diameter of grinding stone shaft : Ø 30(-0.01mm)

Lens shaft screw : 21h7*M20*24

Clamp motor speed : 16~ 1,300 Rpm

Water pump motor : 220V, 60w, 2P, Single phase

Equipment size : 1,250*800*1,450

Equipment weight : 650KG

Contact Now

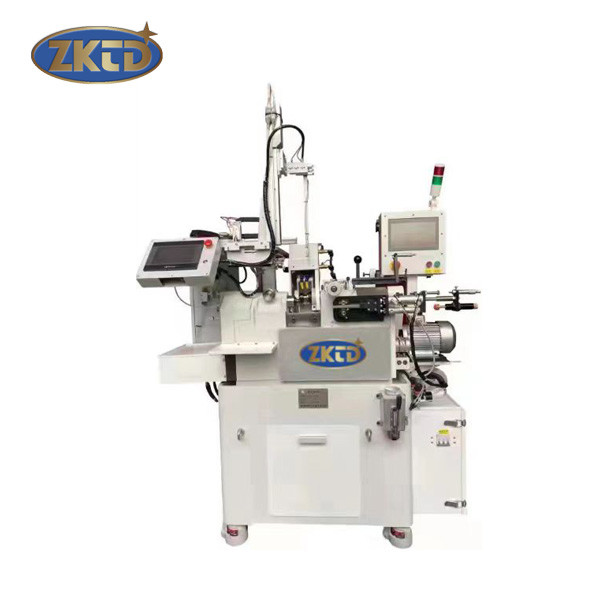

Optical Manufacturing Equipment Centering Edge Grinding Machine

Technical Parameter (D3)

Sr No.	Description	Unit	Value
1	Lens processing range	Ø	Φ2~ Φ80
2	Lens axis rotation speed	Rpm	0.7~695
3	Lens processing time	Sec	9.2~920
4	Movement range of grinding stone axis	Mm	0~ 10
5	Inner diameter of grinding stone shaft	Ø	30(-0.01mm)
6	Grinding stone shaft speed	Rpm	28303890 left and right (50~60Hz)
7	Stone shaft motor configuration		380V, 0.75Kw, 2P, three-phase
8	Cam motor configuration		220V, 400w, 1.27N.m., Single phase (servo motor)
9	Motor configuration of lens shaft and fixture shaft		220V, 400w, 1.27N.m., Single phase (servo motor)
10	Lens shaft screw		21h7M2024
11	Clamp motor speed	Rpm	16~ 1,300
12	Water pump motor		220V, 60w, 2P, Single phase
13	Control system		Kunlun 10.4
14	Left and right transfer range of grinding stone shaft	Mm	0~ 15
15	LM left and right transfer range	Mm	0~ 15
16	Front and rear transfer range of grinding stone shaft	Mm	0~ 50
17	Equipment size	Mm	1,2508001,450
18	Equipment weight	Kgf	650

Centering Edge Grinding Optical Manufacturing Equipment / Machine Three Phase
